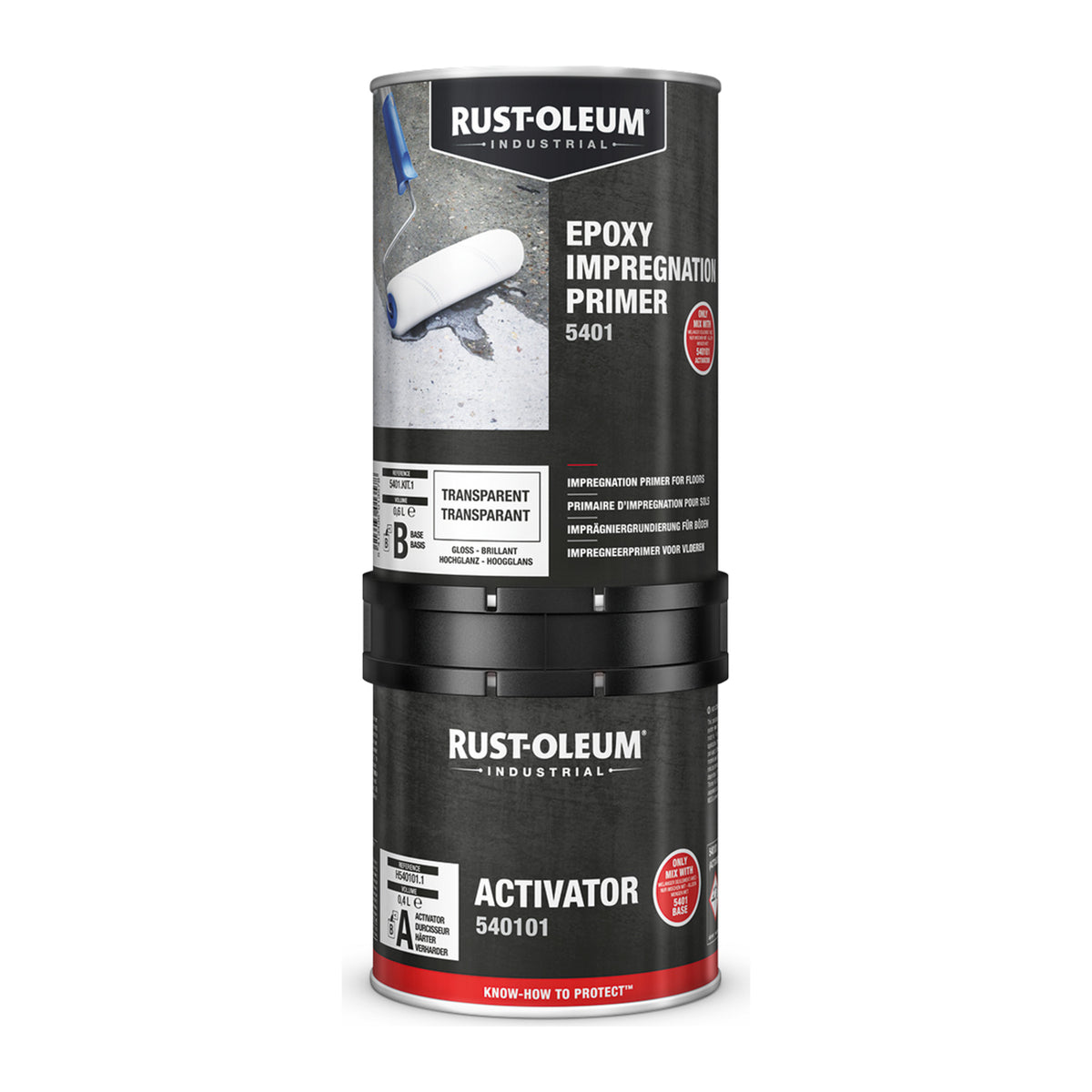

Rust-Oleum 5401 Epoxy Impregnation Primer Kit

Rust-Oleum 5401 is a solvent-free epoxy impregnation primer for concrete and other porous mineral surfaces, supplied as a complete kit of base and activator.

Key features

• Improves adhesion on porous mineral floors
• Impregnates porous and brittle floors
• Contains no solvents (VOC 0 g/l as supplied)
• Can be applied to slightly damp surfaces
• Also ideal as a tack coat for 5180 Epoxy Repair Mortar

Where to use it

On concrete and masonry, mainly by roller or brush, as a key before Rust-Oleum systems such as 9100, 5500, Pegakote and 9400.

Technical details

• Mixing ratio base : activator 3 : 2 by volume (kit supplied matched); induction time 10 minutes; pot life 30 minutes
• Touch dry, handle and recoat 16 hours; fully cured 7 days (20°C)
• Theoretical coverage 10 m²/litre at 100 µm
• Thin with Thinner 160 by porosity: very porous up to 20%; normal 10–30%; power-floated 20–40% (thinning raises VOC)
• Brush (natural bristle) or 12 mm polyester roller (14–18 mm on textured surfaces)
• Apply at 10–35°C, humidity below 85%, surface 3°C above dew point
• Concrete should have at least 25 N/mm² compressive and 1.5 N/mm² tensile strength
• Clean up with Thinner 160

Preparation

New concrete should cure and dry for at least 30 days. Degrease, remove laitance and loose concrete by vacuum blasting or etching with Surfa-Etch 108, and remove curing compounds completely. Repair defects with 5180 Epoxy Repair Mortar.

Download the official 5401 Epoxy Impregnation Primer technical data sheet (PDF). Read the safety data sheet and the can label before use.
