Rust-Oleum 9169 Epoxy Rust Primer Red 5L Kit

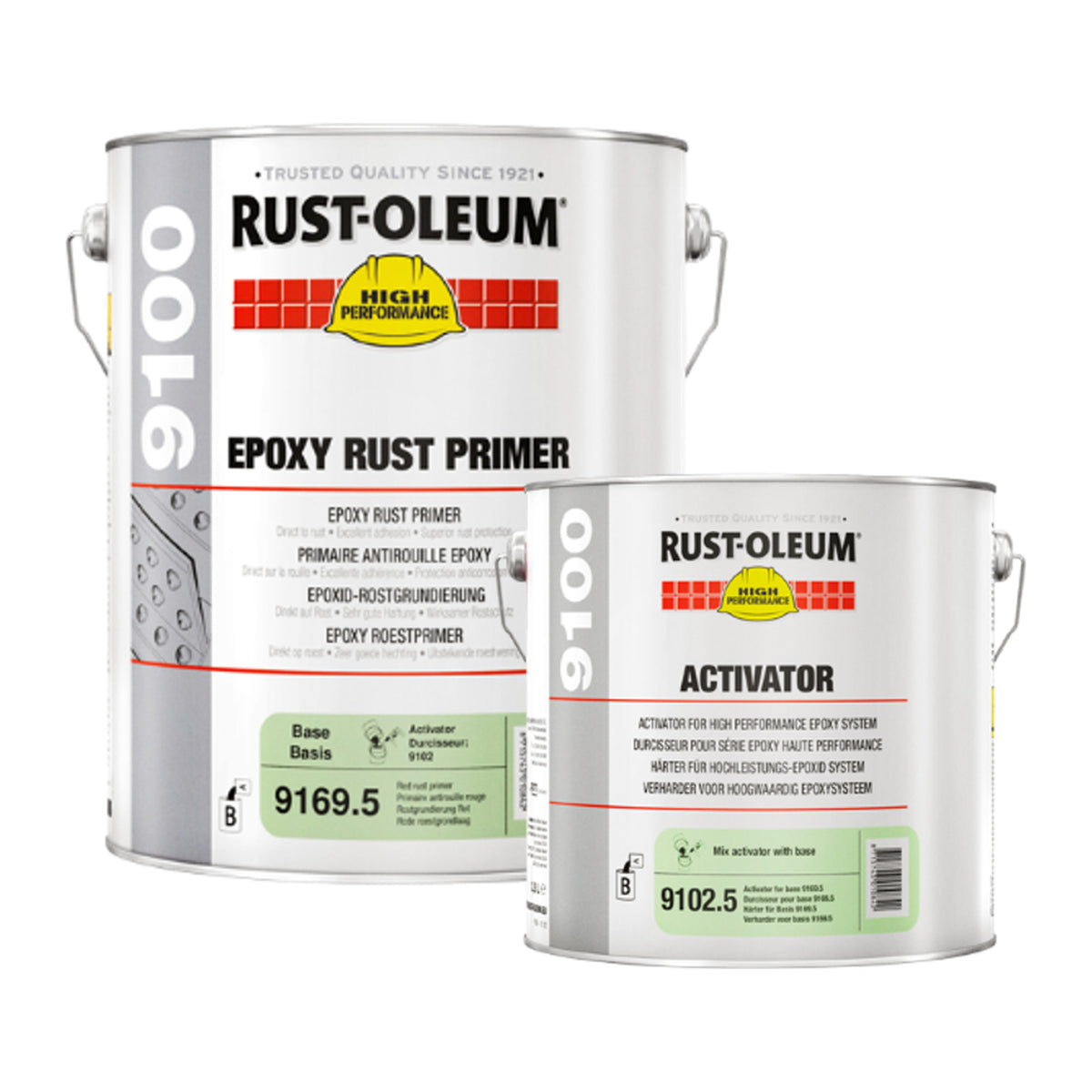

Rust-Oleum 9169 Epoxy Rust Primer, red: a low-viscosity two-pack epoxy primer for manually derusted metal, supplied as a complete 5 litre kit with activator.

Key features

• Can be applied directly to sound rusted surfaces, so less preparation
• Penetrates through rust onto sound metal
• High amount of rust inhibitors
• Easy to apply by brush, roller or spray
• Corrosion class C4 (high protection); heat resistant to 150°C dry heat

System

Recoat with 9170/9180 primers and 9100 topcoats for protection against strong chemicals, acids, alkalis and solvents, frequent spillage and chemical cleaning, and high humidity.

Technical details

• Mixing ratio 1 : 1 by volume (kit supplied matched); induction time 1 hour
• Pot life 4 hours for a 5 litre mix at 20°C
• Touch dry 2 hours; handle 4 hours; recoat after 16 hours and within 72 hours; fully cured 8 days
• Theoretical coverage 11.7 m²/litre at 50 µm dry (85 µm wet); max. 100 µm dry per coat
• Brush, roller (8–12 mm) or airless: up to 10% Thinner 160; air-atomised up to 20%
• Apply at 5–35°C, humidity below 85%, surface 3°C above dew point
• Clean up with Thinner 160; VOC 371 g/l

Preparation

Degrease by alkaline or high-pressure (steam) cleaning. Remove loose rust, mill scale and failed coatings by hand or power tool to St 2/3; large areas may be brush-off blasted to Sa 2. Sand sound coatings and check compatibility.

Download the official 9169 Epoxy Rust Primer technical data sheet (PDF). Read the safety data sheet and the can label before use.
